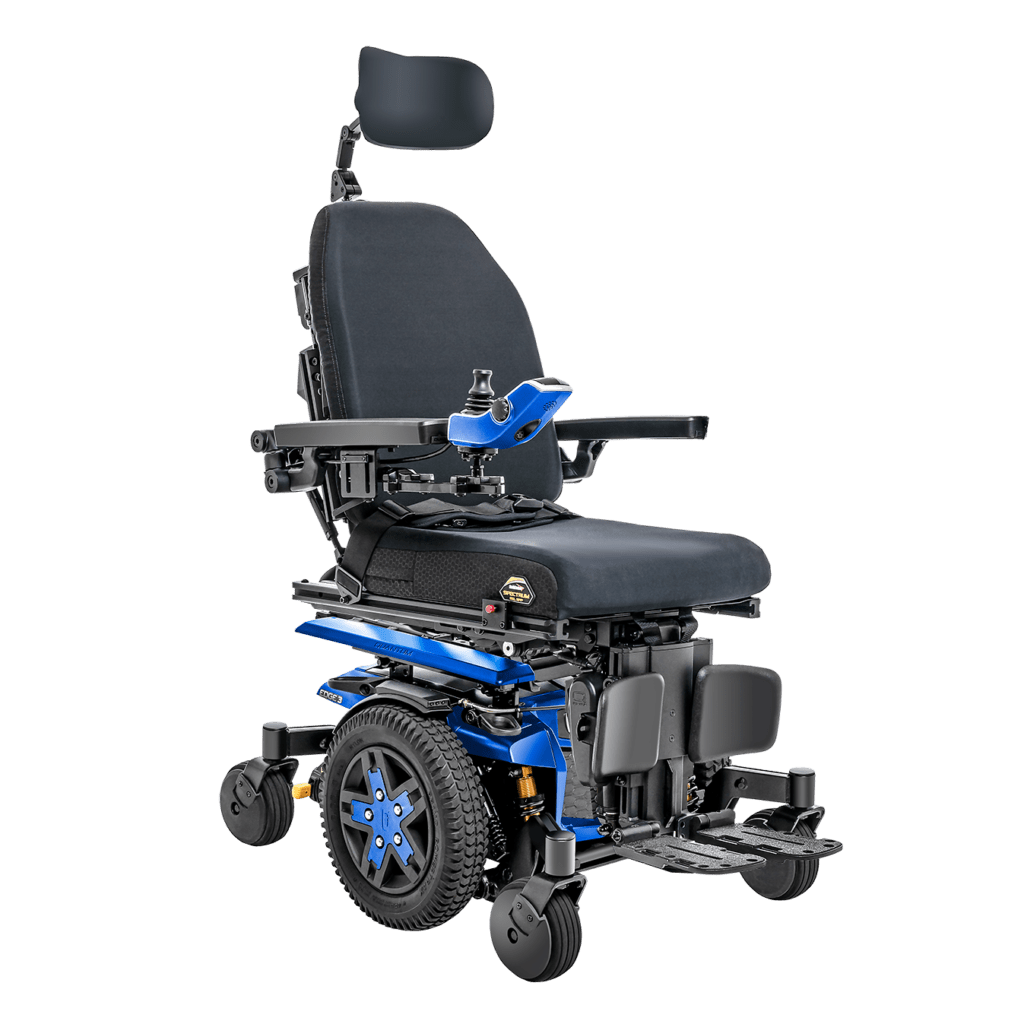

The design of the Edge 3 is for the most advanced powerchair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel is available with up to 305 mm of power-adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel colour accents.
The Edge 3 is available with 2-pole motors with a speed of 6 mph or optional 4-pole motors with a speed of 4 mph!
All high-end active and medium-active wheelchairs are sold by assessment only. All quoted prices are 'base prices' and are subject to change following assessment.
Features
- Upgraded SRS (Smooth Ride Suspension)
- 4 mph (6.44 kmh) with 305 mm iLevel
- Drive wheel colour accents included
Specifications
| Drive Configuration |
Mid-wheel Drive |
| Weight capacity |
21.6st (136 kg) |
| Turning radius |
20.5" (521 mm) |
| Length |
32.23"(819 mm) |
| Width |
24.4" (620mm) with 14" wheels
26.4" (671mm) with knobby wheels |
| Ground clearance |
2.7" (69 mm) |
| Max. Obstacle Climbing |
3.5" (89 mm) |
| Max. Slope Rate |
7.5° (13.2%) |
| Base Weight |
63 kg |
| Castor wheels |
Front: 6" solid
Rear: 6" solid |
| Drive wheels |
14" x 3" / 14" x 14" knobby - Solid or Pneumatic |
| Battery Size |
2x 62 Ah |
| Speeds |
4 mph (6.44 km/h) / 6 mph (10 kmh) / 7 mph (11.26 km/h) |
| Motor Packages |
2-Pole / 4-Pole / Accu-Trac, Mid-wheel 6 |
| Suspension System |
SRS (Smooth Ride Suspension) |
| Electronics |
NE+ / Q-Logic 3 |
| Seats |
TB3 / TB4 |
| Seat Width |
12" - 22" |
| Seat Depth |
12" - 22" |
| Powered Positioning |
Tilt / Recline / Lift / Legs |
| iLevel |
12" lift @ 4.5 mph |
| Standard Features |
USB charger port and front & rear LED fender lights |
| Crash Tested |
Yes |

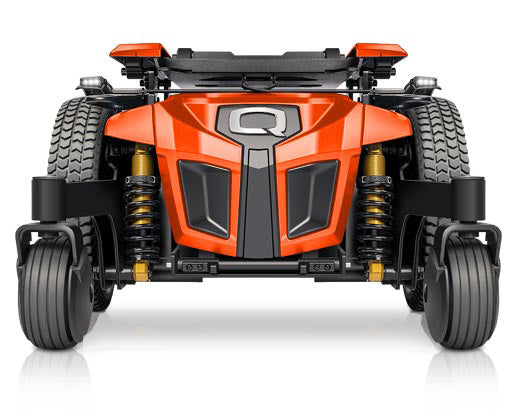

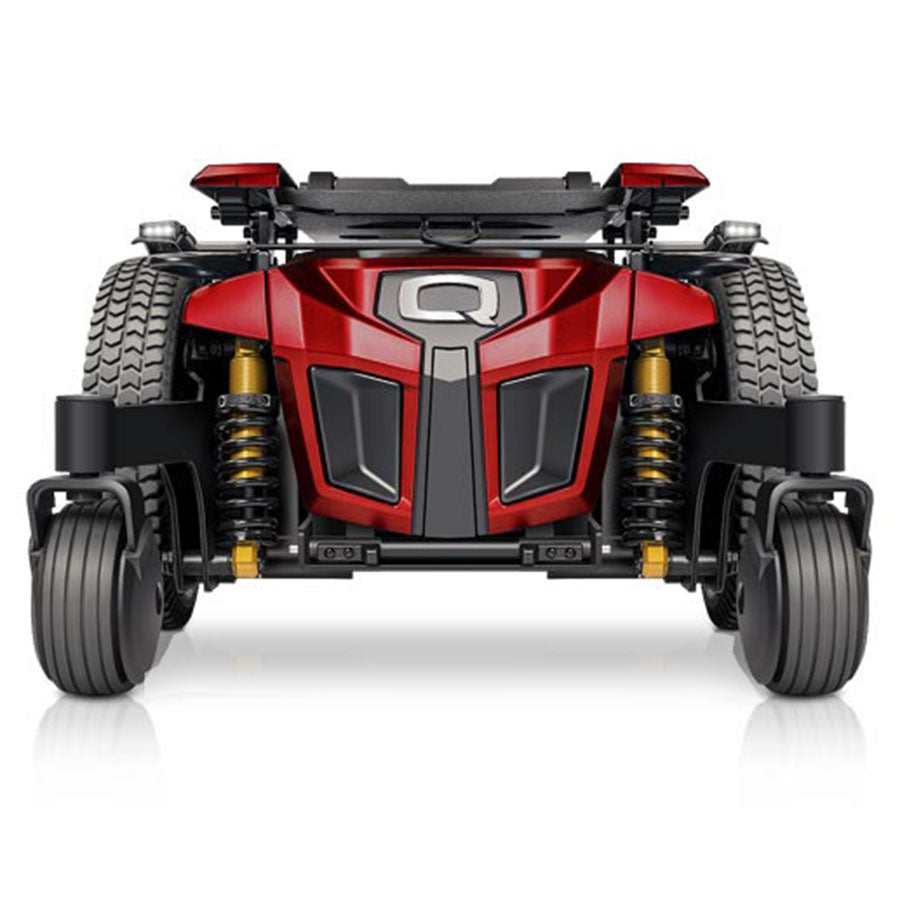

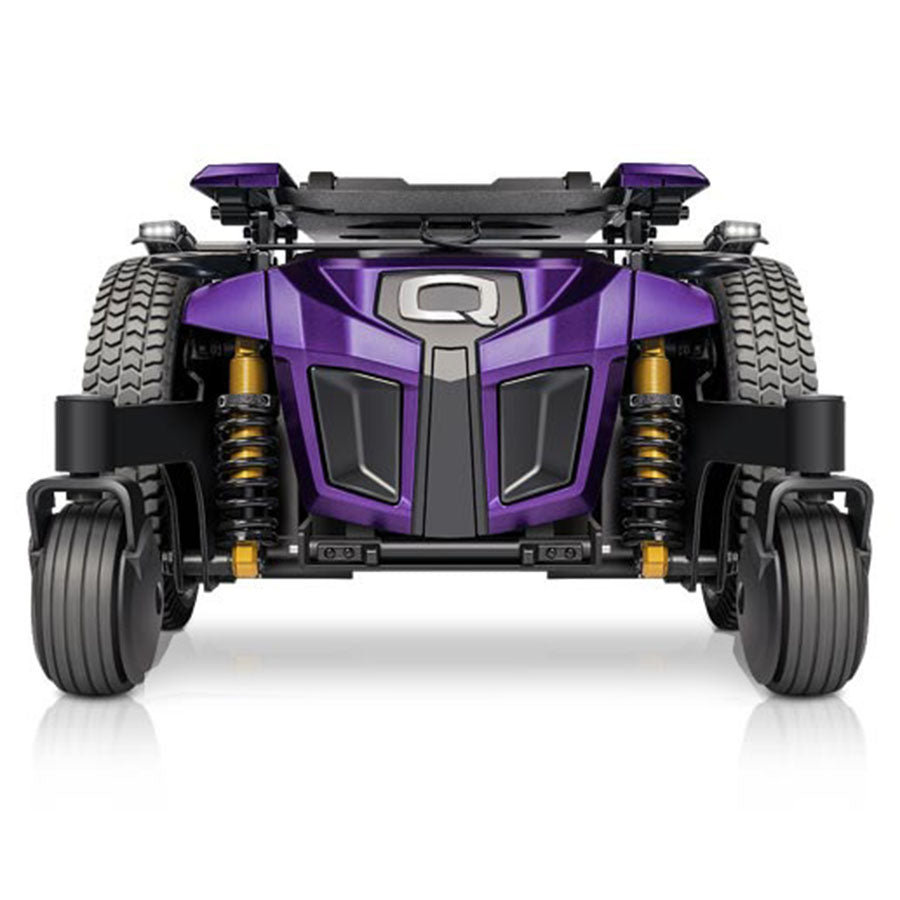

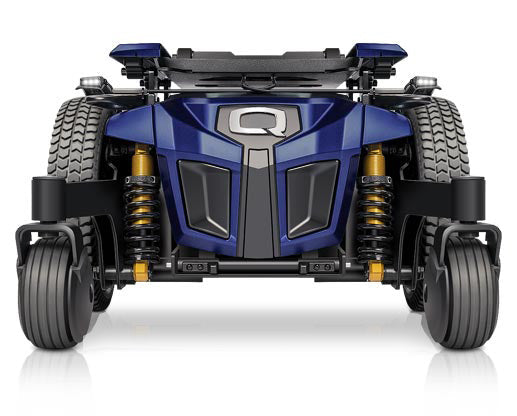

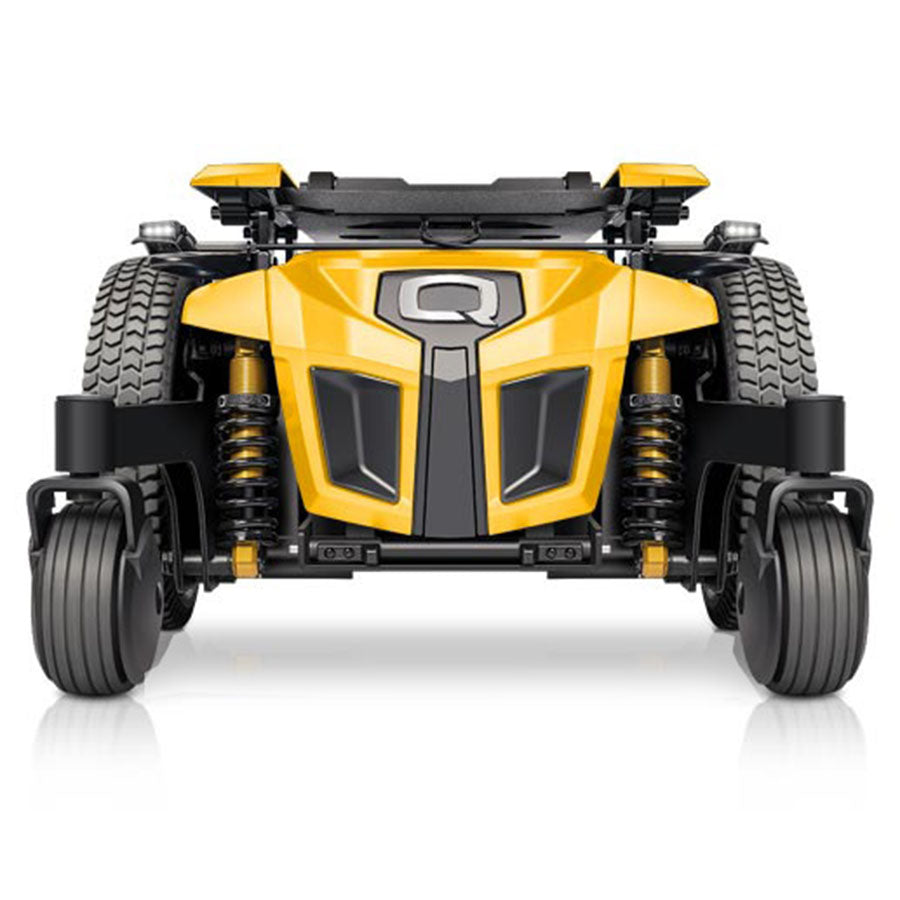

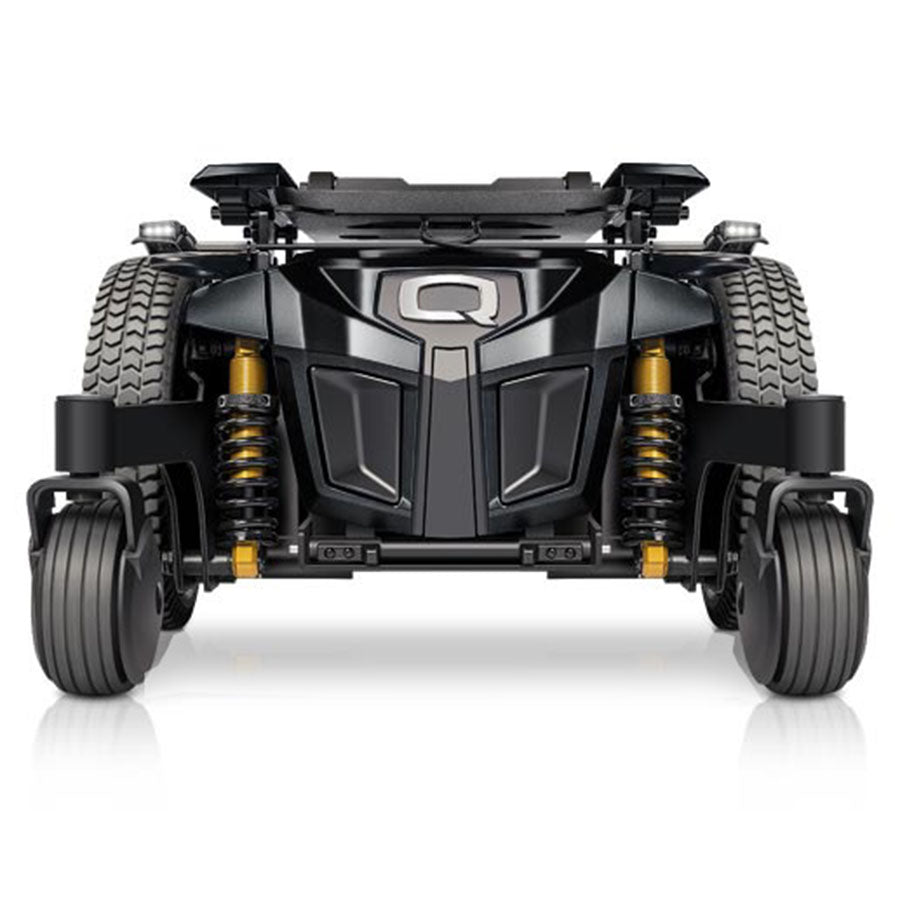

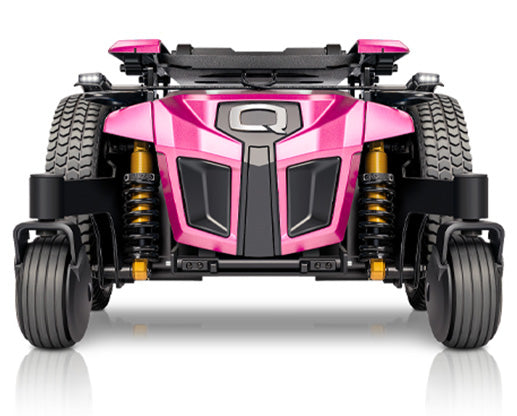

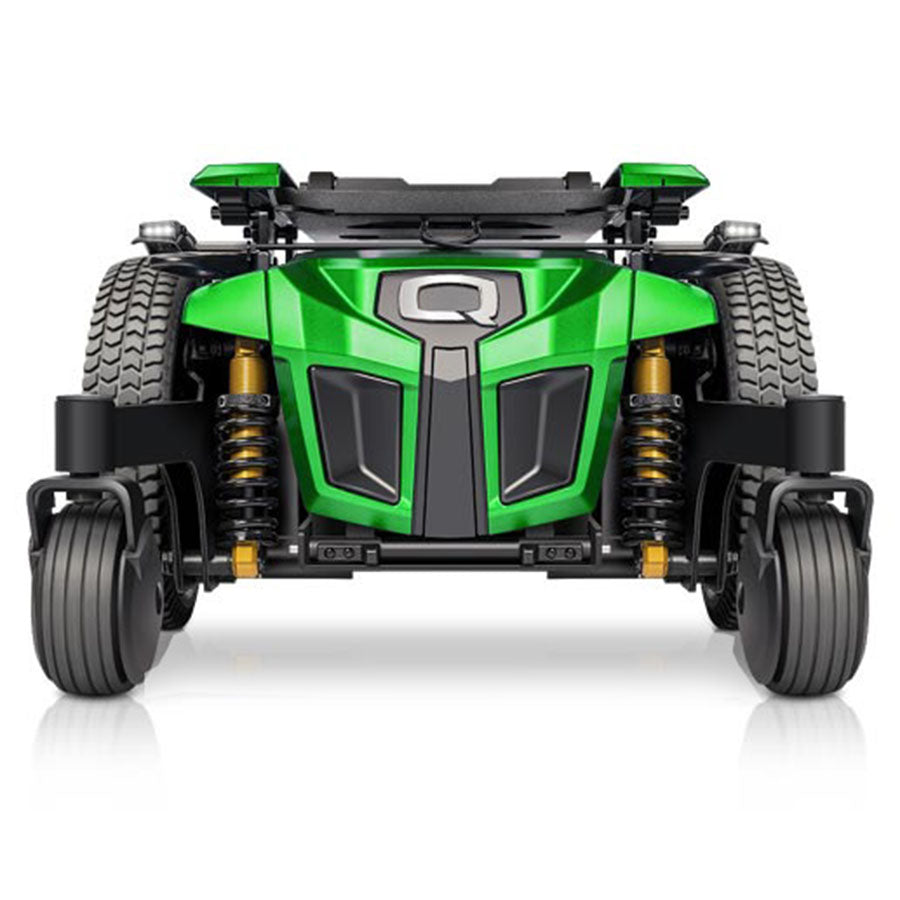

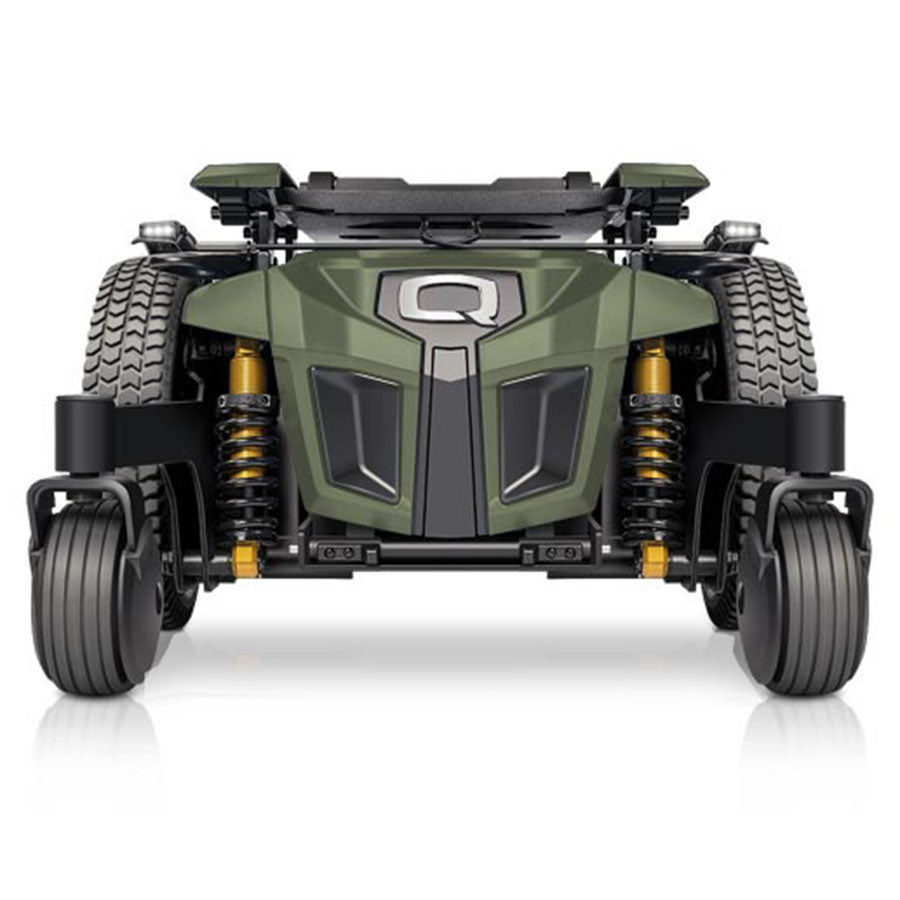

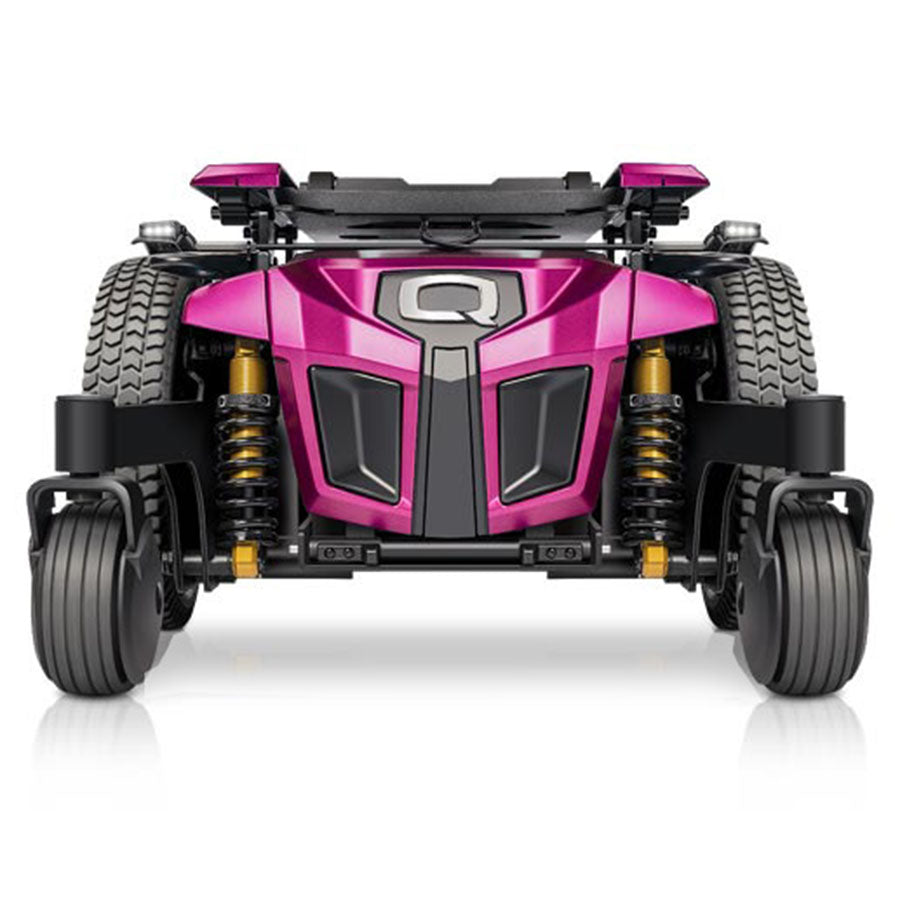

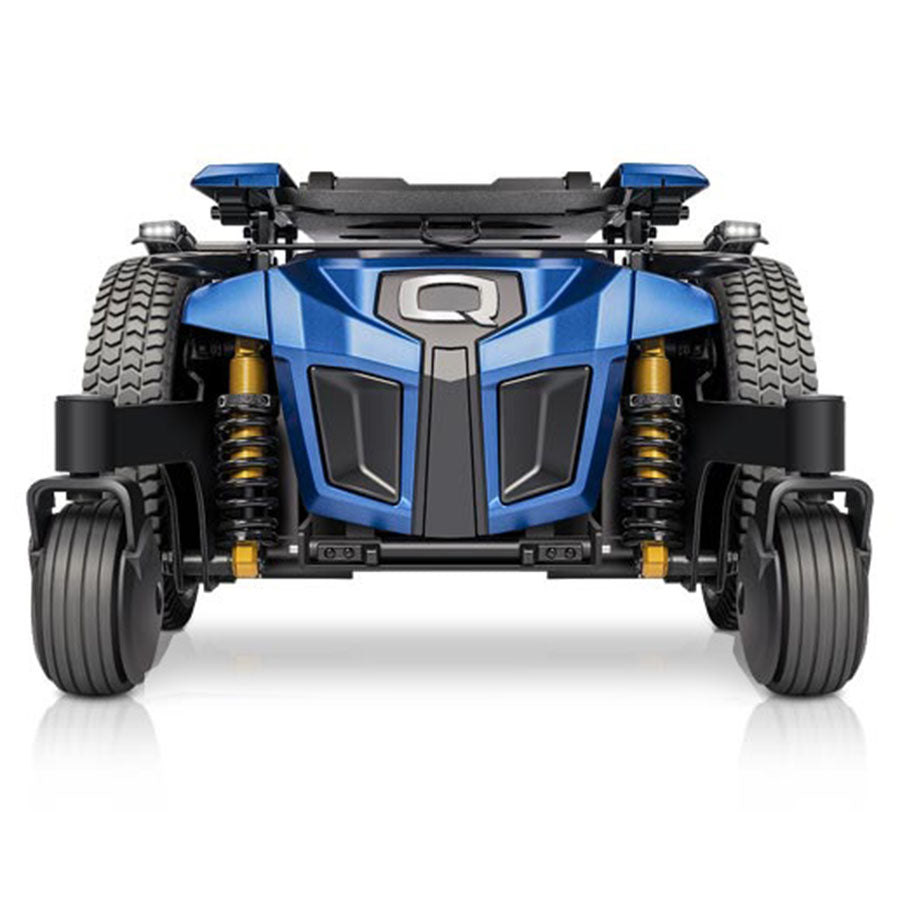

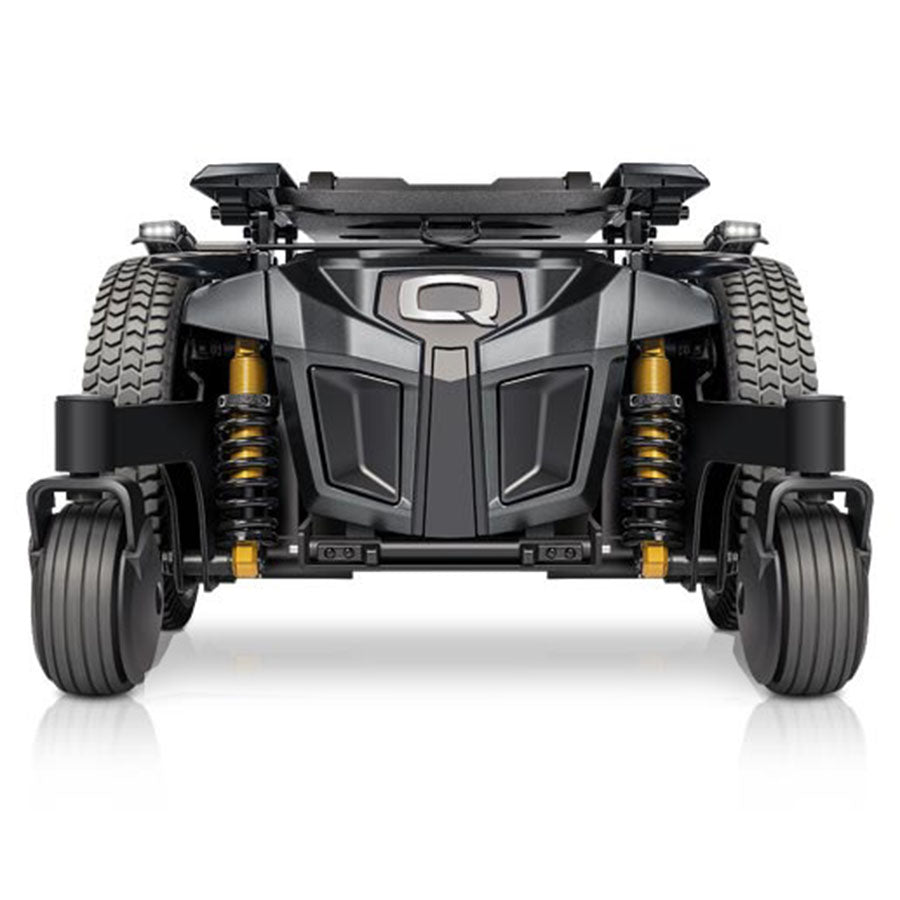

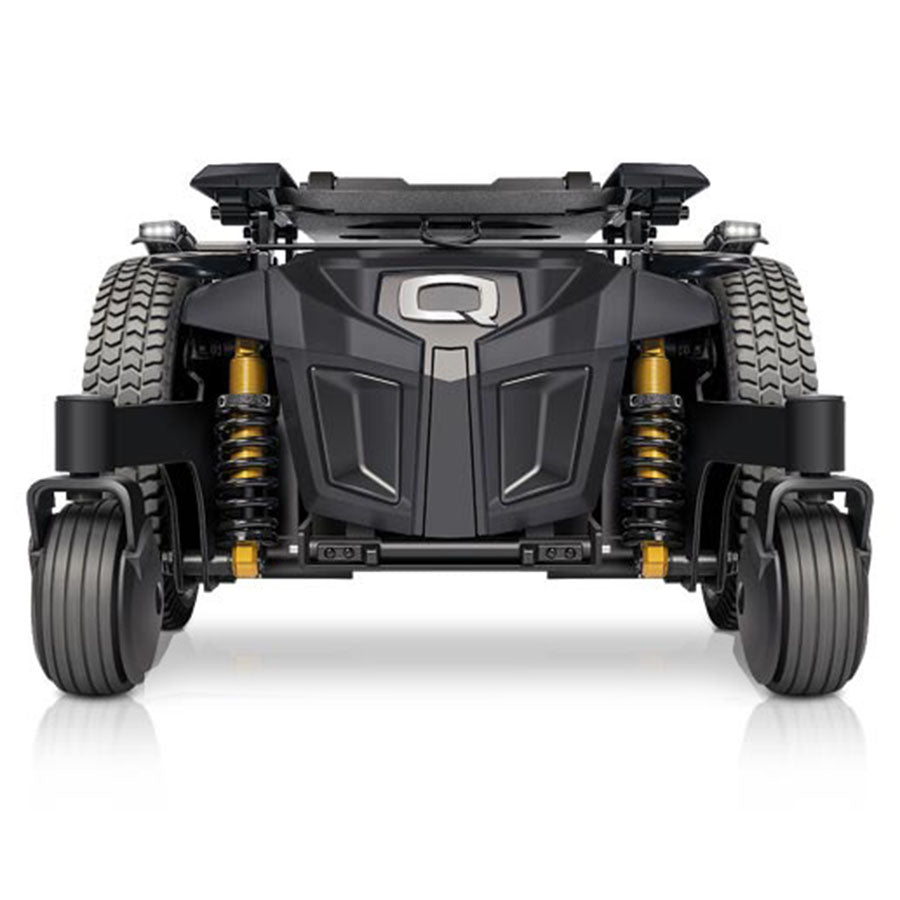

| Colour Options |
14 vibrant colour options |
